SDX DC SOLAR DRAINAGE PUMP
Unleash Efficiency with SDX DC Solar Drainage Pump: Your Sustainable Solution
| Categories | SDX DC SOLAR SEWAGE PUMP |
| Brand | HYBSUN Solar Water Pump Manufacturer |
| Model | SDX Series |
| Material | iron |
| Type | SOLAR SDX PUMP |
| Certificate | CE, ISO9001 |
| Warranty | 24 months |
| MOQ | 1 set |
| FOB port | Ningbo/Shanghai |
| Terms of Payment | L/C, T/T, Paypal |
| Nos | Model | Volatge(V) | Power(W) | VMP(V) | VOC(V) | Q.Max(m3/h) | H.Max(M) | Outlet(Inch) |
| 1 | SDX280-12/6A | DC24 | 280 | 24-48 | <50 | 13 | 8 | 1″ |
| 2 | SDX370-13/7B | DC48 | 370 | 48-96 | <100 | 14 | 9 | 1″ |
| 3 | SDX550-16/8B | DC48 | 550 | 48-96 | <100 | 16 | 10 | 1″ |
| 4 | SDX750-27/8C | DC72 | 750 | 72-144 | <150 | 19 | 15 | 1″ |
| 5 | SDX750-20/14C | DC72 | 1100 | 72-144 | <150 | 21 | 19 | 1″ |
| 6 | SDX750-14/18C | DC96 | 1300 | 96-192 | <200 | 24 | 14 | 1.5″ |
| 7 | SDX750-9/26C | DC96 | 1300 | 96-192 | <200 | 26 | 19 | 2″ |
| 8 | SDX1100-34/9C | DC110 | 1500 | 110-192 | <200 | 29 | 14 | 1″ |
| Nos | Model | Volatge(V) | Power(W) | VMP(V) | VOC(V) | Q.Max(m3/h) | H.Max(M) | Outlet(Inch) |
| 1 | SDX1100-20/18C | DC72 | 1100 | 72-144 | <150 | 18 | 20 | 1.5″ |
| 2 | SDX1100-12/32C | DC72 | 1100 | 72-144 | <150 | 32 | 12 | 2.5″ |
| 3 | SDX1300-25/14D | DC96 | 1300 | 96-192 | <200 | 14 | 25 | 2″ |
| 4 | SDX1300-17/28D | DC96 | 1300 | 96-192 | <200 | 28 | 17 | 2.5″ |
| 5 | SDX1300-10/40D | DC96 | 1300 | 96-192 | <200 | 40 | 10 | 3″ |
| 6 | SDX1500-25/17E | DC110 | 1500 | 110-192 | <200 | 17 | 25 | 2″ |
| 7 | SDX1500-17/33E | DC110 | 1500 | 110-192 | <200 | 33 | 17 | 2.5″ |
| 8 | SDX1500-10/47E | DC110 | 1500 | 110-192 | <200 | 47 | 10 | 3″ |
Advantages
- DC Brushless Permanent-magnetic synchronous motor for solar powered submersible dc water pump to get high speed and high efficiency.
- NSK bearing with alloy mechanical seal,offering the longer working life.
- MPPT function offers higher utilization rate of solar energy.
- Water proof and leak proof based on double water seal.
- Intelligent water shortage protection: the pump stops working automatically when there is no water in the well, and automatically starts working 30 minutes later.
- Featured function:MPPT function,Soft start function,Dry running protection,Adjustable speed function, Error wiring protection,Over/under-voltage protection,Overload protection,Over-current protection, phase-loss protection,High working temperature protection

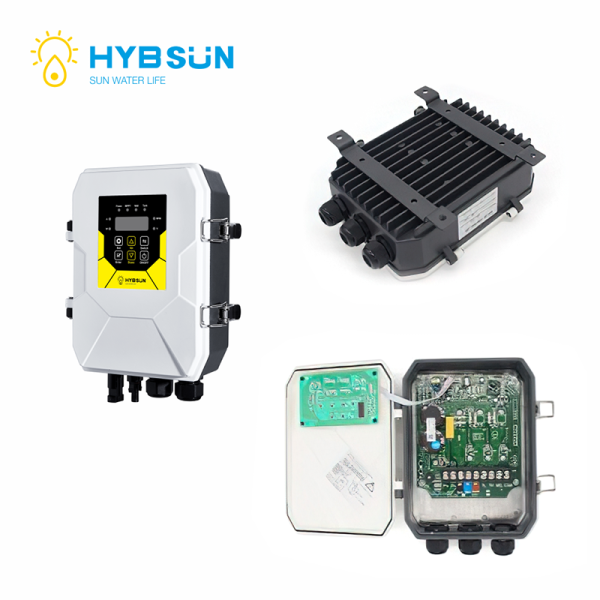

ADVANTAGES OF DC CONTROLLER
HYBSUN SOLAR PUMP CONTROLLER
- Waterproof grade: IP65
- Max. input current:15A
- MPPT function, the solar power utilization rate is higher.
- Automatic charging function: Guarantee the pump normally working, meanwhile charge the battery; And when there is no sunshine, the battery can make the pump continuously working.
- LED displays the power, voltage, current, speed etc working condition.
- Frequency conversion function: It can automatically run with frequency conversion according to the solar power and user also can change the speed of pump manually. Automatically start and stop working.
- Water proof and leak-proof: Double seal effect.
- Soft start: No impulse current, protect the pump motor.
- High voltage/Low voltage/Over-current/High temperature protection
How to Connect the Solar Water Pump
Working Environment and Electrical Property
| Controller Model | Adaptable Pump | Max. Input Current(A) | Max. Open Circuit Viltage(V) | MPPT Voltage Range(V) | Working Temperature(°C) |
| DC24 | Rated 24V pump | 17 | <55 | 24-48 | -75 |
| DC48 | Rated 48V pump | 17 | <105 | 48-96 | -75 |
| DC72 | Rated 72V pump | 17 | <160 | 72-144 | -75 |
| DC96 | Rated 96V pump | 17 | <210 | 96-192 | -75 |
| DC110 | Rated 110V pump | 17 | <210 | 110-192 | -75 |
Accessories and Packaging Display
