DC Solar Well Pumps Manufacturer & Supplier

  • Looking to Expand Your Solar Well Pump Offerings? Discover Your Ultimate Wholesale Guide Here!



HYBSUN Solar Well Pumps: The Best Option for All Your Agriculture and Irrigation Needs

Power your irrigation and livestock watering needs sustainably with our long-lasting, environmentally friendly solar well pumps.



Table Of Contents For This Page

To make sure you can find the information you want quickly,

we have prepared this content directory that will jump to the corresponding location when you click on it.

General Application For solar well pumps

Deep water pumps solar powered has the following wide range of applications , Inquiry us for more solution..



Agricultural Irrigation

Domestic Water

Livestock

Advantages of Solar Well Pumps Kits

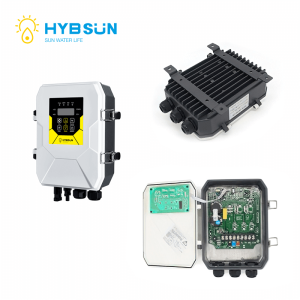

Advantages Of The Pump Controller

IP65 Waterproof: Reliable in all conditions.
Wide Voltage Range: Fits various power setups.
All-Temperature Performance: Works between -15℃ to 60℃.
17A Max Input: Ensures steady power flow.
MPPT Technology: Boosts solar efficiency.
LED Monitoring: Tracks performance metrics.
Adaptive Speed: Auto-adjusts to solar input.
Automatic Operation: Hands-free functionality.
Soft Start: Safeguards motor from spikes.
Safety Protections: Shields against electrical and operational hazards.









Advantages of HYBSUN DC Solar Well Pumps:

Increased Efficiency: DC brushless motor increases efficiency by 20% to reduce solar panel needs.
Strong Design: 304 stainless steel in key parts ensures durability and prevents breakage.
Better Bearings: Features Japanese NSK bearings with a strong structure for a longer lifespan.
Improved Seal: Silicon carbide graphite seals increase reliability and last longer.
Heat-Resistant Wires: F grade, 180℃ copper wires for better performance.
Efficient Construction: Stator and rotor made from high-quality silicon steel for maximum efficiency.
Tough Magnets: Withstand up to 150℃, suitable for different climates.





Solar Well Pumps By Material

When it comes to materials for making Solar Borehole Pumps, there are countless options. But if we had to narrow it down, we’d say there are two main ones



Stainless steel screw

HYBSUN’s stainless steel screw pumps are built to last and designed to save energy.Stainless steel construction ensures resistance to corrosion, providing a longer lifespan even in harsh environmental conditions. Utilizes renewable energy, reducing reliance on fossil fuels and minimizing environmental impact.Using solar power, these pumps are perfect for supplying water in an environmentally friendly way. They’re made to work well and they’re perfect for all kinds of uses. If you need a pump that’s powered by the sun, you need HYBSUN.

plastic impeller

HYBSUN’s solar water pumps come with the latest plastic impellers, a game-changer in terms of cost efficiency and performance. These impellers are super light, which means they put less of a load on the motor and make the pump more energy efficient. They’re made of plastic, which means they’re a lot cheaper than traditional materials, but they’re still tough and work just as well. They’re also resistant to corrosion and wear and tear, so they’ll keep working well in different water conditions, which means they’ll last a long time.

plastic impeller

stainless steel impellers

HYBSUN solar water pumps come with stainless steel impellers which means they last long and save money. These impellers are super strong so they won’t break and won’t corrode, which makes them perfect for all kinds of water. They’re made of stainless steel so they’re tough and you don’t have to replace them often, which saves you money in the long run. They’re also super efficient so they work great all the time, which is important for things like watering crops or giving water to businesses.



stainless steel impellers

How to Design a Solar Irrigation Pump System?

With the growing population and increasing demand for food, it is important to find ways to increase crop yields in a sustainable manner. Solar-powered irrigation systems are a great option because they are efficient, reliable, and cost-effective. These systems include solar panels, MPPT controllers, and water pumps.

Step 1: Confirm Your Technical Requirements

Choose a solar deep pump that suits your site by considering the following:

Step 2: Pick the Right Solar Pump for Your Needs

Based on the “actual lift needed,” which includes both vertical and horizontal distances, choose a pump that meets your needs. Consider the pump’s flow rate, price, and material when making your selection.



Step3:Click below to contact us directly

How to Calculate Lift (Groundwater Source)

The actual lift required (H) is calculated as follows:

H = h1/10 + h2 + h3/10 + h4



How does a solar water pump match a solar panel?

Choose a Solar Panel

Choose a solar panel array that is at least 1.3 times the power of the water pump you plan to use to make sure it runs well. Make sure the voltage of the solar panel array matches the voltage requirements of the pump.

Example Simplified:

For a 3-inch Plastic Impeller Solar Submersible Pump with a 750W power requirement and optimal input voltage of 72-144V.

How to choose the water pump extension line?

The water pump comes with a 2-meter cable, which can be customized according to your actual needs. Customers can also extend the cable themselves.

Note for choosing the cable:
Choose waterproof cable.
Choose 4-wire cable.
Below 50m, 2.5sq cable is recommended; 50m-100m, 4sq cable is recommended; 100m-200m, 6sq cable is recommended.



A Brief Self-Nomination,Why Choose HYBSUN SOLAR PUMP?

Hey there, HYBSUN here – your solar water pumping solutions expert. We’ve been leading the way in this field since 2005. We’re all about designing, developing, and manufacturing the best solar water pumps out there. We’re the ones who set the bar for innovation and quality in this industry.

Why Choose HYBSUN?

Customized Solutions for Solar Water Pumping

At HYBSUN, we want to make sure you have the perfect solar water pumping solution for your farm or orchard. Whether you need one of our standard solar water pumps or a custom-designed system, we can make it happen for you.





Increase Your Crops with HYBSUN

When you choose HYBSUN, you’re not just getting a great solar water pump. You’re getting a partner who’s committed to your success in agriculture. We’ll help you get the most out of your irrigation and increase your crop yield with our top-of-the-line solar water pumps.





Things you Need to Know

While there is a limitless number of materials to make Solar Borehole Pumps , one can narrow down the most common into two.

Can I customize a solar water pump?

Yes, please let me know your height and required flow. If you want to customize the water pump, please contact us through our email!

Can you replace products that are damaged during delivery?

Although we ensure top-notch safety for all our orders, mishaps do happen. When they do, please contact customer support on our site. They'll advise you accordingly.

How long does it take for me to receive the goods I ordered?

If it is a sample, we usually only need 1 week, if it is wholesale, it usually takes 4 weeks

How long is your warranty?

Our warranty is 2 years.
